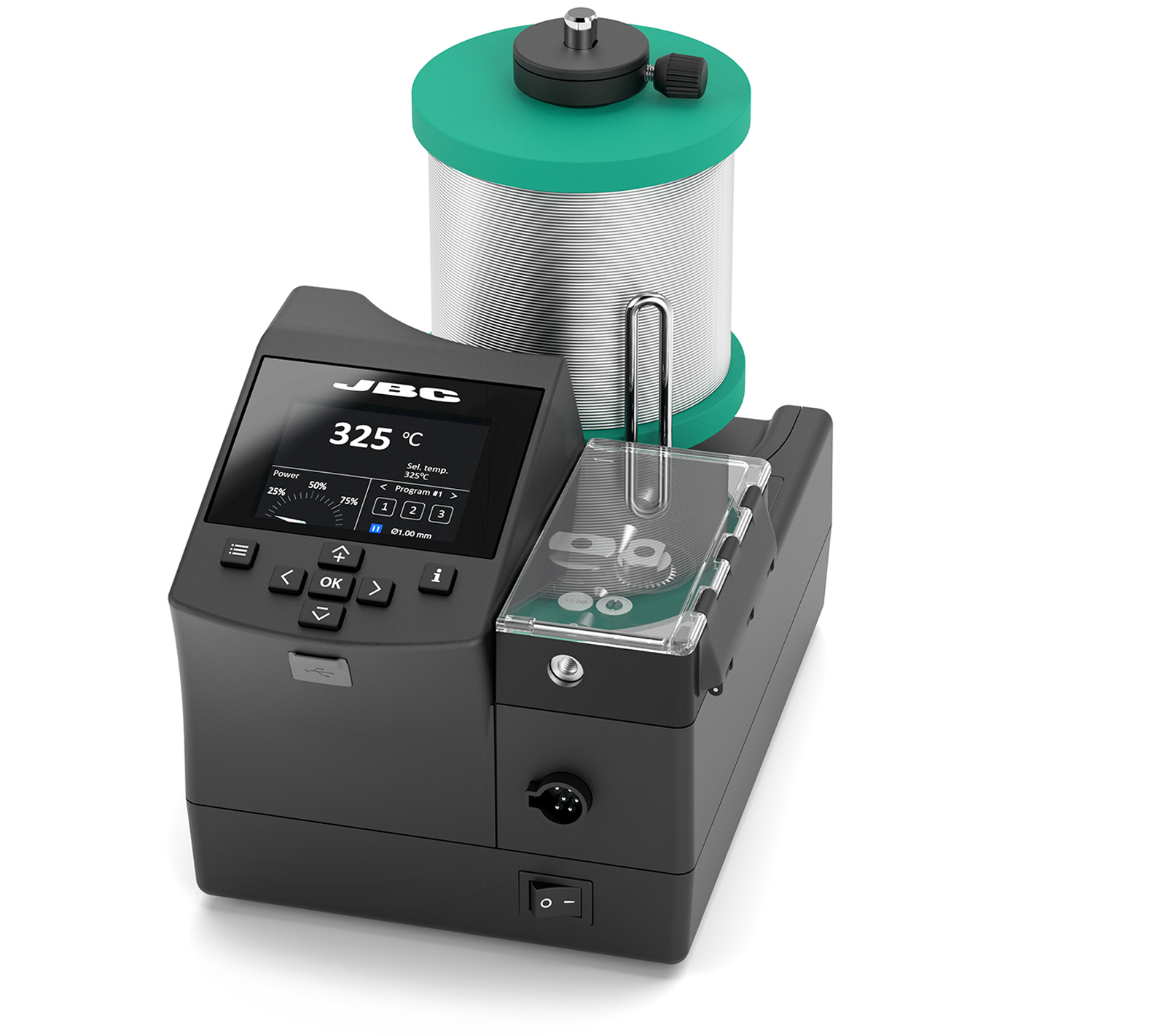

Automatic-Feed Soldering Control Unit

Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.

This control unit is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).

ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range.

This station can hold a solder reel of up to 2 kg / 4.40 lb.

• 3 different working modes:
Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length

• Connectivity:
Data download, remote control for traceability and software updates


デモ機を
お試しください！
品番
ALE-910UVB
100V
ALE-110UVB
120V
ALE-210UVB
230V
製品構成
1 ALE Automatic-Feed Control Unit (guide components assembled)
1 GALE10V Guide Kit Ø 1.0 mm for ALE250 with perforation
Dimensions
該当なし
仕様
Nominal Power
180 W
Peak power
150 W
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF (Through station menu settings)
Connections
USB-A Update and files import-export
USB-B Software PC
RJ12 Fume extractor connection
Equipotential bonding
Optional connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
ESD safe
Meet ANSI/ESD S20.20
Solder wire diameter
1.0 mm / 0.04 in with GALE10V already assembled
Max. wire length
250 mm / 9.84 in (for discontinuous + program mode)
Min. wire length
0.5 mm / 0.02 in
Max. forward speed
0.5 to 50 mm/s / 0.02 to 1.97 in/s
Max. Backward Function
0.0 to 5.0 mm/s / 0.5 to 0.20 in/s
Programs
5 Programs
Program Steps
1 to 3 Steps (for each program)
USB-A
Firmware update
Graphics and profiles
USB-B
PC communications
Pedal connector
Tool control
COMPATIBLE SOLDER REEL
Weight
up to 2 kg / 4.4 Ib
Diameter
max. 100 mm / 3.94 in
Height
max. 100 mm / 3.94 in
Reel stand axis
Ø 10 mm / Ø 0.4 in
WEIGHT AND DIMENSIONS
Control Unit
235 x 170 x 112 mm / 5.81 kg.
Package
368 x 368 x 195 mm / 6.72 kg.
