Accessories
B·NANO K

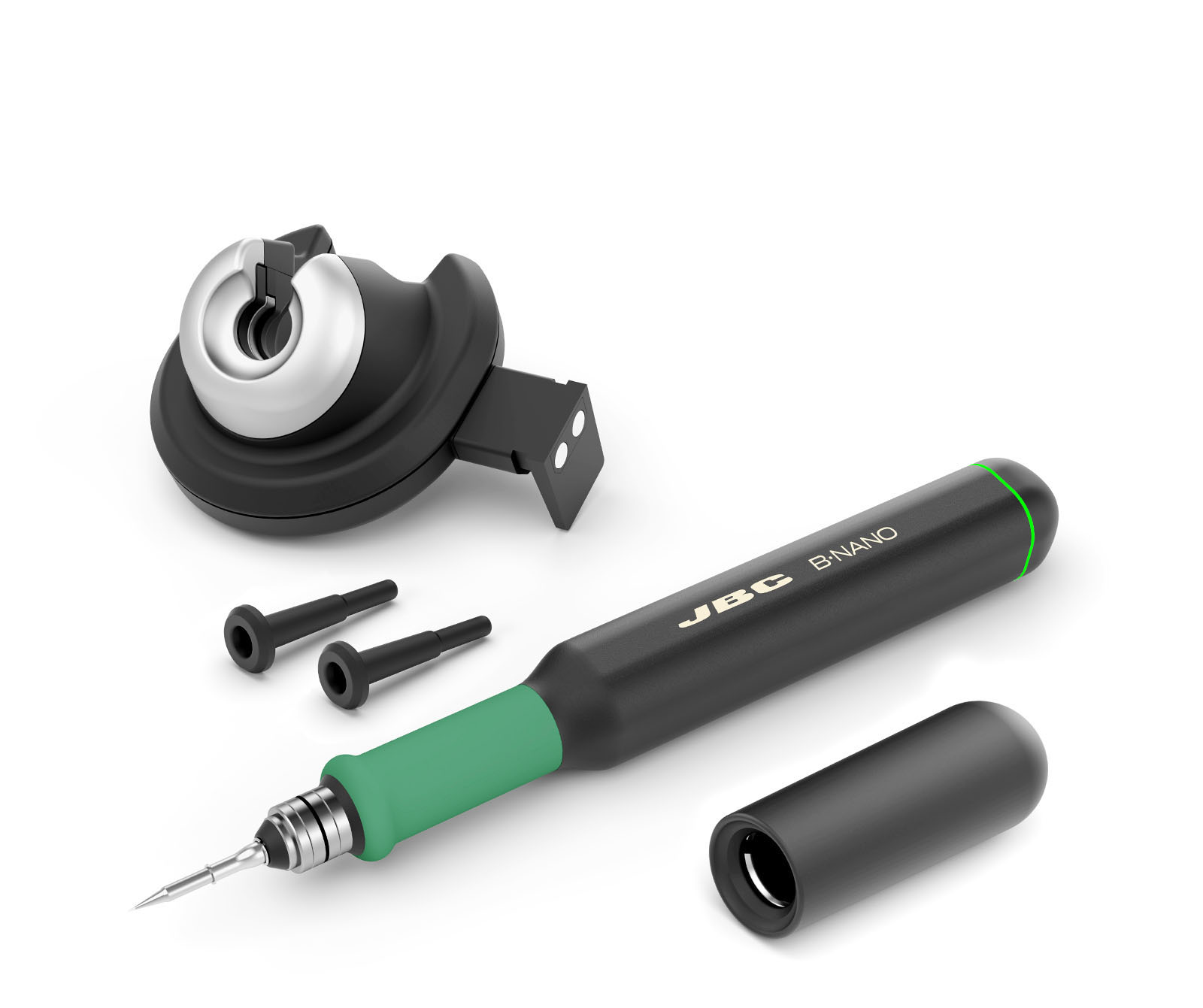

Nano Handle Expansion Kit for B·IRON

This kit allows you to extend any B·IRON Station adding an extra tool.

Features

  • B·NANO Nano Handle. Designed for highest precision applications offering maximum control working under microscope. It perfmorms up to 120 small SMD soldering joints per charge.
  • Fully compatible with C115 Cartridge Range.
  • Tool Holder. Its assembly is fast and easy to the charging base.

* If you do not have a charging base, you must start by acquiring B·IRON NANO.

*Cartridge not included




DON’T BELIEVE US
TRY IT!

from 0 pcs.
References
BN-KA
Product composition
1 B·NANO Nano Handle for B·IRON (cartridge not included)
1 B0643 C115 Cartridge Adapter for B·IRON Charging-Base
1 H2464 Left-Side Charging-Holder for B·IRON Handles
1 B1596 Safety Cap for B·IRON Handles
Dimensions
N/A
Specifications
Peak Power (Tool)
15 W
Selectable temperature
100 to 450ºC
Temperature accuracy
± 3% (using reference cartridge)
Ambient Operating Temp
10 - 50 °C
Battery
Li-Ion 7.4V / 120mAh
Charge time
30 minutes
Tool weight
32 g
WEIGHT AND DIMENSIONS
Package
245 x 185 x 45 mm / 0.28 kg.
